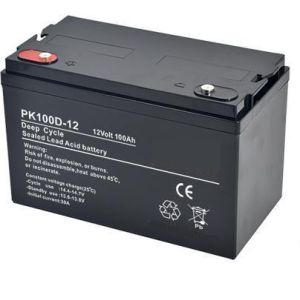

Deep Cycle Sealed Lead Acid Battery 12v - 100ah UL94-V0

Product Categories

Beijing MITSCN Co., Ltd.

Contact Now

Name: Deep Cycle Sealed Lead Acid Battery 12v 100ah UL94V0
Brand: Mitscn
Price: 1 USD

Brand Name : Mitscn

Certification : ISO

Place of Origin : China

MOQ : Negotiatble

Payment Terms : T/T, D/P, D/A, MoneyGram, Western Union, L/C

Delivery Time : 30days

Packaging Details : carton,pallet

Internal Resistance : 5.0mΩ@25℃(FullChargedBattery)

Nominal Voltage : 12V(6cellsinseries)

Rated Capacity : 100Ah (C10,1.80V/cell)

Weight : 30 kg

DOD 80% : ≥450Cycles@25℃

Container Material : A.B.S,UL94-HB,UL94-V0,Optional

Contact Now

MAINTENANCE & CAUTIONS

Charging Procedure:

Float service:

Every month, recommend inspection every battery voltage.

Every three months, recommend equalization charge for one time.Equalization charge method: Step 1:Discharge: 100% rate capacity discharge.

Step 2:Charge: Max. Current 0.3CA, constant voltage 2.40-2.45V/Cell charge 24h.

Cycle service:

Avoid battery over discharge,especially battery sereis connection use.

Charged with recommend voltage,ensure battery can be full recharged.

Ingeneral,recharge capacity should be 1.1~1.15 times discharge capacity.

Length of service life will be directly affected by the number of discharge cycles, depth of discharge, Ambient temperature and charging voltage.

Charge the batteries at least once every six months, if they are stored at 25℃.Charging Method:

ConstantVoltage:-0.2C×2h+2.40~2.45V/cell×24h,Max.Current0.25CA

ConstantCurrent:-0.2C×2h+0.1C×12h

Fast:-0.2C×2h+0.3C×4h

Terminal of torque:
